String Wound Filter Cartridge# Technical Parameters Size 10 inch 20 inch 30 inch 40 inch Outer Diameter (±1mm) 63mm 63mm 63mm 63mm Inner Diameter (±1mm) 28mm/30mm 28mm/30mm 28mm/30mm 28mm/30mm

Product Introduction:

Technical ParametersSize10 inch20 inch30 inch40 inchOuter Diameter (±1mm)63mm63mm63mm63mmInner Diameter (±1mm)28mm/30mm28mm/30mm28mm/30mm28mm/30mmLength254mm508mm762mm1016mmFilter MediaAbsorbent cotton yarn, polypropylene yarnSupport CorePP core, stainless steel coreRemarksAll sizes can be customizedString wound filter cartridges are manufactured by precisely winding textile fiber yarns around a porous support core. Different filtration ratings are achieved by adjusting winding density and pore geometry of the filter layer. They efficiently remove suspended solids and fine particles from liquids and withstand high filtration pressure. The gradient pore structure (larger outer pores, smaller inner pores) delivers excellent deep-depth filtration performance, superior chemical compatibility and high dirt holding capacity. Multiple material options are available to suit various liquid filtration applications.

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

Technical Parameters

Size	10 inch	20 inch	30 inch	40 inch
Outer Diameter (±1mm)	63mm	63mm	63mm	63mm
Inner Diameter (±1mm)	28mm/30mm	28mm/30mm	28mm/30mm	28mm/30mm
Length	254mm	508mm	762mm	1016mm
Filter Media	Absorbent cotton yarn, polypropylene yarn
Support Core	PP core, stainless steel core
Remarks	All sizes can be customized

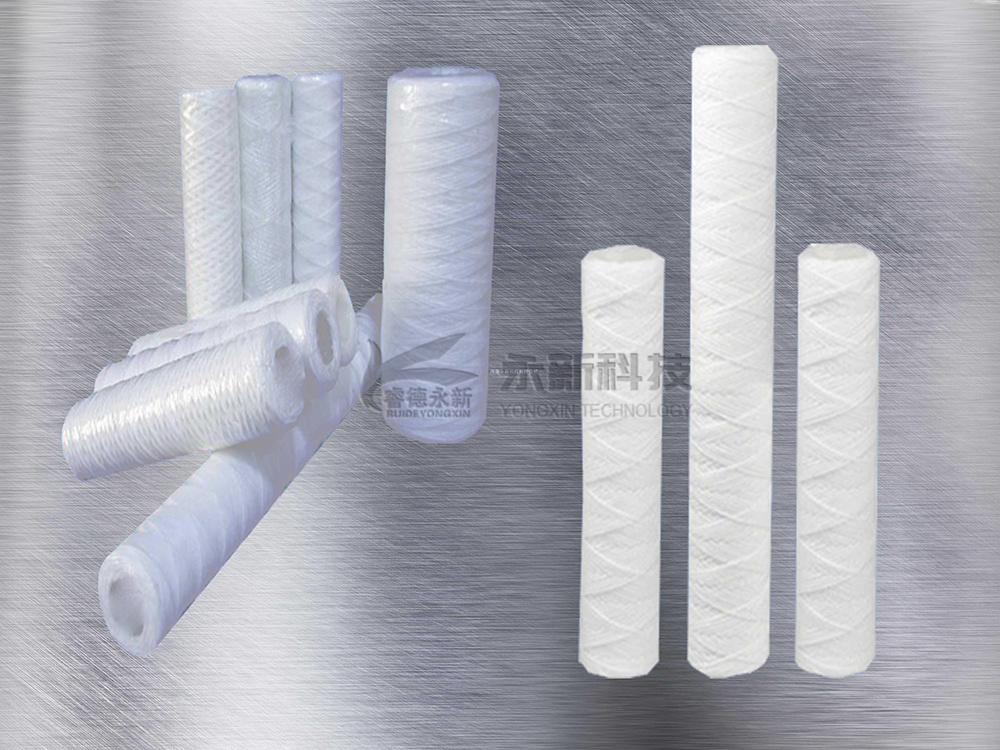

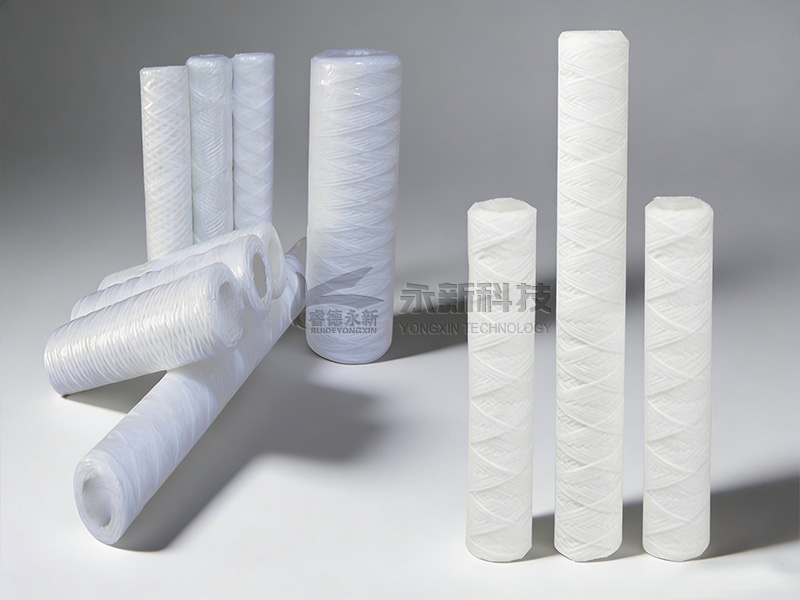

String wound filter cartridges are manufactured by precisely winding textile fiber yarns around a porous support core. Different filtration ratings are achieved by adjusting winding density and pore geometry of the filter layer. They efficiently remove suspended solids and fine particles from liquids and withstand high filtration pressure. The gradient pore structure (larger outer pores, smaller inner pores) delivers excellent deep-depth filtration performance, superior chemical compatibility and high dirt holding capacity. Multiple material options are available to suit various liquid filtration applications.

Product Features

It features smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.

It is a porous deep-filter material made of stainless steel fibers sintered at high temperature.

The pleated filter core boasts high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry
