Filter Elements

Wedge Wire Filter Element

Product Introduction:

# Technical SpecificationsNominal SizeDN25DN32DN40DN50DN65DN80Screen TubeOuter DiameterΦ32Φ38Φ45Φ57Φ76Φ89Inner DiameterΦ23.3Φ29.3Φ36.3Φ48.3Φ67.3Φ80.3Number of Support Rods121214162022Nominal SizeDN100DN125DN150DN200DN250DN300Screen TubeOuter DiameterΦ108Φ133Φ159Φ219Φ273Φ325Inner DiameterΦ99.3Φ121.6Φ147.6Φ207.6Φ261.6Φ313.6Number of Support Rods283036486070Wedge Wire Screen, also known as Johnson Screen, is composed of surface wires spirally wound around axial support rods. The support rods and surface wires are integrated together by resistance welding. ## Wide Range of Applications Water treatment, petrochemical, papermaking, beverage, food, pharmaceutical, biotechnology and other industries.

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

# Technical Specifications

Nominal Size		DN25	DN32	DN40	DN50	DN65	DN80
Screen Tube	Outer Diameter	Φ32	Φ38	Φ45	Φ57	Φ76	Φ89
Screen Tube	Inner Diameter	Φ23.3	Φ29.3	Φ36.3	Φ48.3	Φ67.3	Φ80.3
Number of Support Rods		12	12	14	16	20	22

Nominal Size		DN100	DN125	DN150	DN200	DN250	DN300
Screen Tube	Outer Diameter	Φ108	Φ133	Φ159	Φ219	Φ273	Φ325
Screen Tube	Inner Diameter	Φ99.3	Φ121.6	Φ147.6	Φ207.6	Φ261.6	Φ313.6
Number of Support Rods		28	30	36	48	60	70

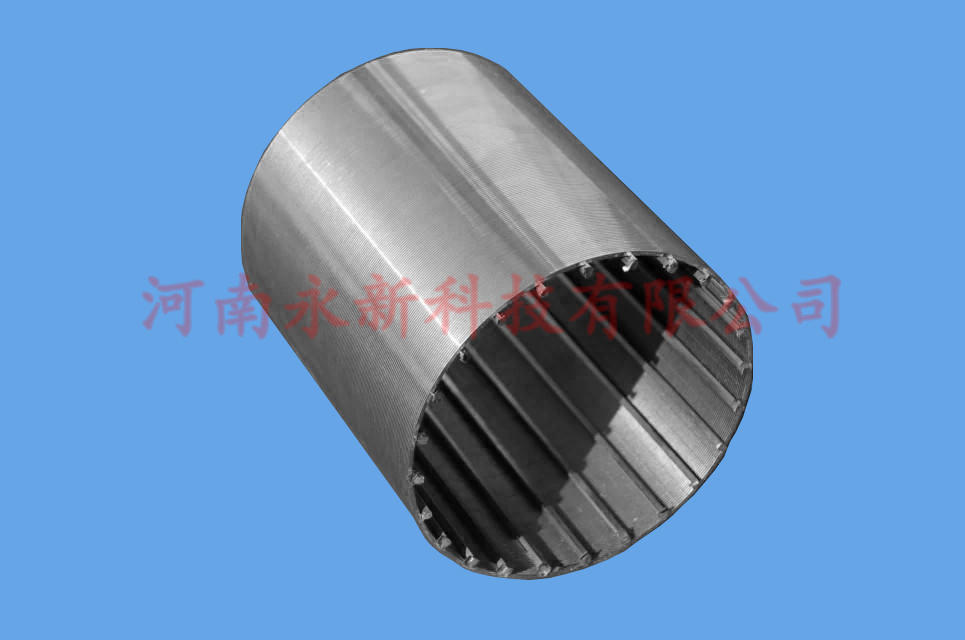

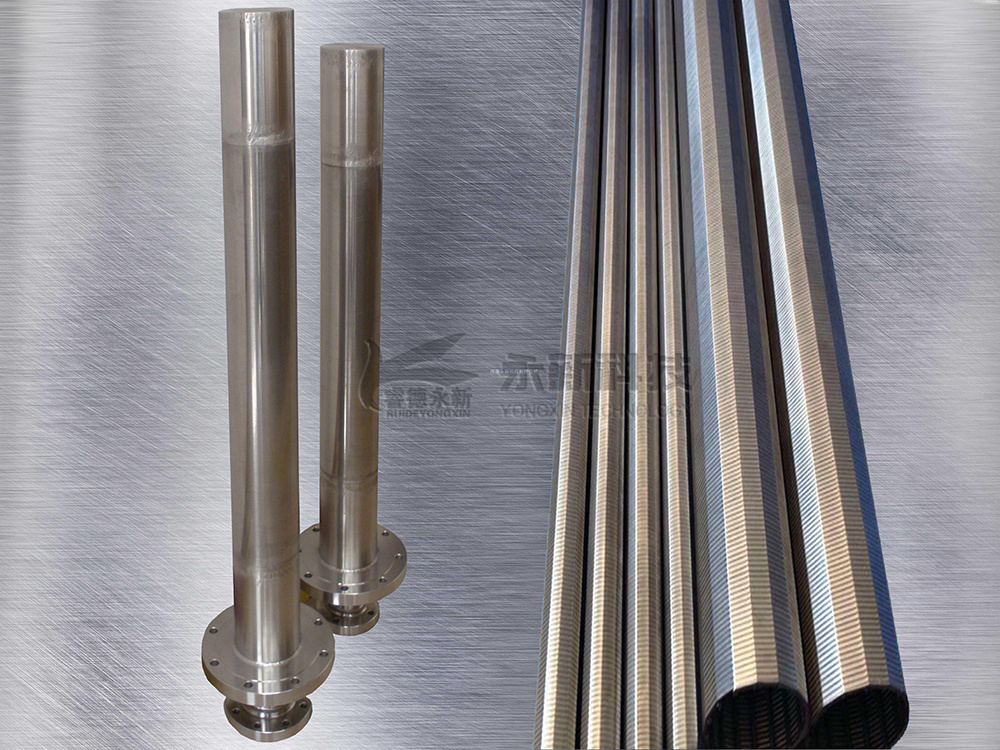

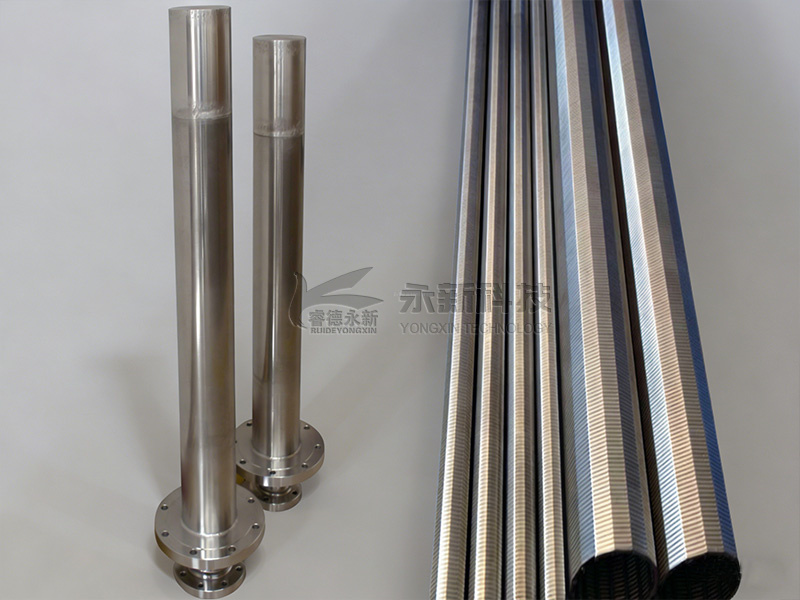

Wedge Wire Screen, also known as Johnson Screen, is composed of surface wires spirally wound around axial support rods. The support rods and surface wires are integrated together by resistance welding. ## Wide Range of Applications Water treatment, petrochemical, papermaking, beverage, food, pharmaceutical, biotechnology and other industries.

Product Features

It features smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.

It is a porous deep-filter material made of stainless steel fibers sintered at high temperature.

The pleated filter core boasts high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry
