Sintered Metal Wire Mesh Filter Cartridge-Filter Elements-Products-Henan Yongxin Technology Co., Ltd.

Current location：Home >Filter Elements

Filter Elements

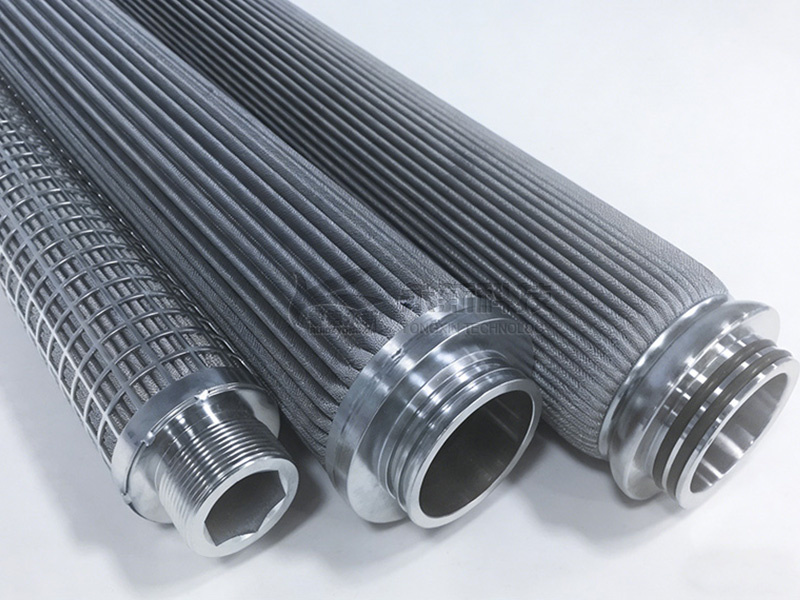

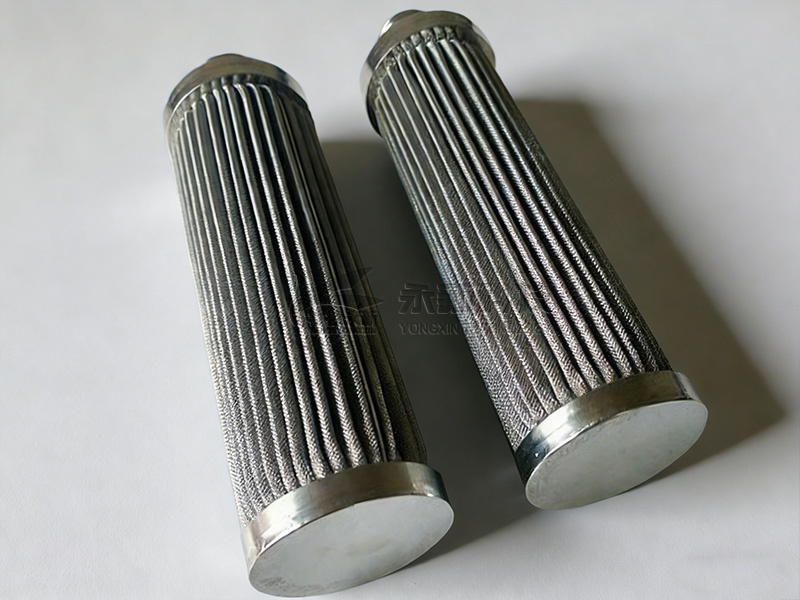

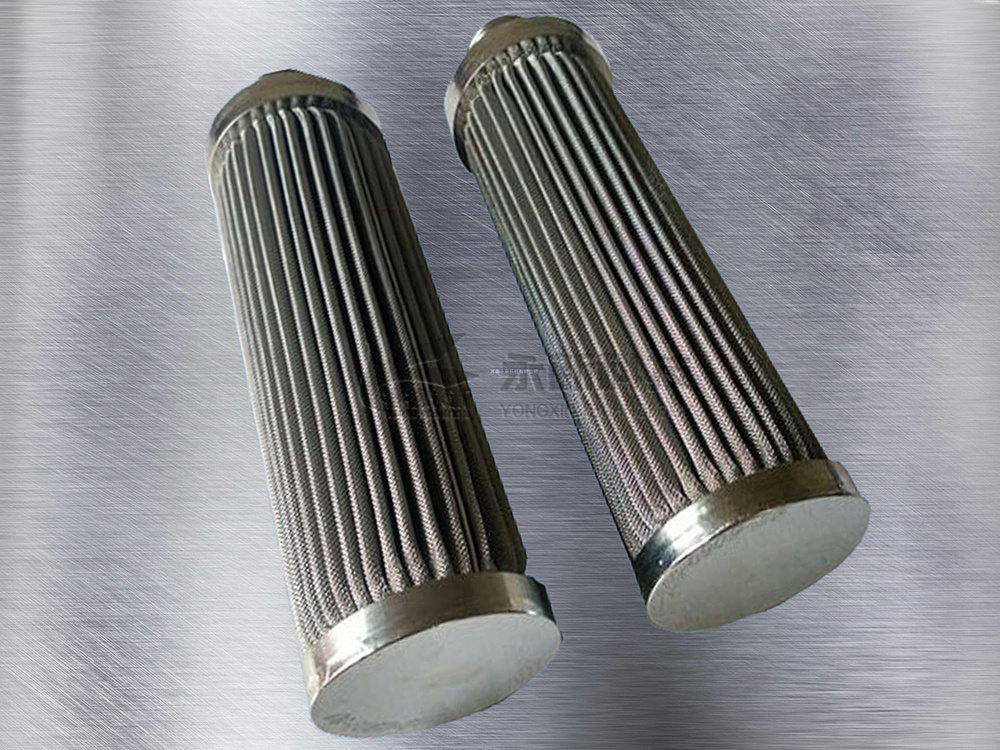

Sintered Metal Wire Mesh Filter Cartridge

Product Introduction:

ModelPore Size μmPorosity %Permeability (N₂)Bubble Point Pressure PaDirt Holding Capacity mmRelative Permeability CoefficientL/min·cm²·PaSSZ-0033684.5×10-4123000.6~0.8SSZ-0055752.0×10-350000.5~0.6SSZ-01010775.0×10-337000.4~0.5SSZ-01515788.0×10-326000.4~0.5SSZ-02020751.2×10-218900.4~0.5SSZ-02525801.6×10-215600.3~0.4SSZ-03030802.2×10-213000.3~0.4SSZ-04040783.0×10-29750.3~0.4SSZ-06060855.0×10-46900.3~0.4Stainless steel woven mesh is woven from stainless steel wire. Its pleated filter cartridges feature smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.Stainless steel fiber sintered felt is a porous deep-filter material made of stainless steel fibers sintered at high temperature. Its pleated filter elements deliver high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

Model	Pore Size μm	Porosity %	Permeability (N₂)	Bubble Point Pressure Pa	Dirt Holding Capacity mm
Model	Pore Size μm	Porosity %	Relative Permeability Coefficient L/min·cm²·Pa	Bubble Point Pressure Pa	Dirt Holding Capacity mm
SSZ-003	3	68	4.5×10-4	12300	0.6~0.8
SSZ-005	5	75	2.0×10-3	5000	0.5~0.6
SSZ-010	10	77	5.0×10-3	3700	0.4~0.5
SSZ-015	15	78	8.0×10-3	2600	0.4~0.5
SSZ-020	20	75	1.2×10-2	1890	0.4~0.5
SSZ-025	25	80	1.6×10-2	1560	0.3~0.4
SSZ-030	30	80	2.2×10-2	1300	0.3~0.4
SSZ-040	40	78	3.0×10-2	975	0.3~0.4
SSZ-060	60	85	5.0×10-4	690	0.3~0.4

Stainless steel woven mesh is woven from stainless steel wire. Its pleated filter cartridges feature smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.

Stainless steel fiber sintered felt is a porous deep-filter material made of stainless steel fibers sintered at high temperature. Its pleated filter elements deliver high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Features

It features smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.

It is a porous deep-filter material made of stainless steel fibers sintered at high temperature.

The pleated filter core boasts high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry

Technical Parameters
