Filter Elements

Melt Blown Filter Cartridge

Product Introduction:

Filter Cartridge Type10 inch20 inch30 inch40 inchCartridge Length254mm508mm762mm1016mmFlow Rate (t/h)0.511.52.0Filtration Area (㎡)0.511.52.0Cartridge MaterialPolypropylene (PP)Cartridge End Cap TypesStandard flat end, 215, 222, 226Filtration Rating (μm)1, 5, 10, 25, 50, 75, 100, 150, 200Cartridge Diameter (mm)OD: 62–65, ID: 28–30Max Operating TemperaturePP: 90℃RemarksCustom pore sizes and lengths available upon customer requestMelt blown filter cartridges are tubular filter elements manufactured from non-toxic, odorless polypropylene pellets via heating melting, melt spinning, drawing and forming.

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

Filter Cartridge Type	10 inch	20 inch	30 inch	40 inch
Cartridge Length	254mm	508mm	762mm	1016mm
Flow Rate (t/h)	0.5	1	1.5	2.0
Filtration Area (㎡)	0.5	1	1.5	2.0
Cartridge Material	Polypropylene (PP)
Cartridge End Cap Types	Standard flat end, 215, 222, 226
Filtration Rating (μm)	1, 5, 10, 25, 50, 75, 100, 150, 200
Cartridge Diameter (mm)	OD: 62–65, ID: 28–30
Max Operating Temperature	PP: 90℃
Remarks	Custom pore sizes and lengths available upon customer request

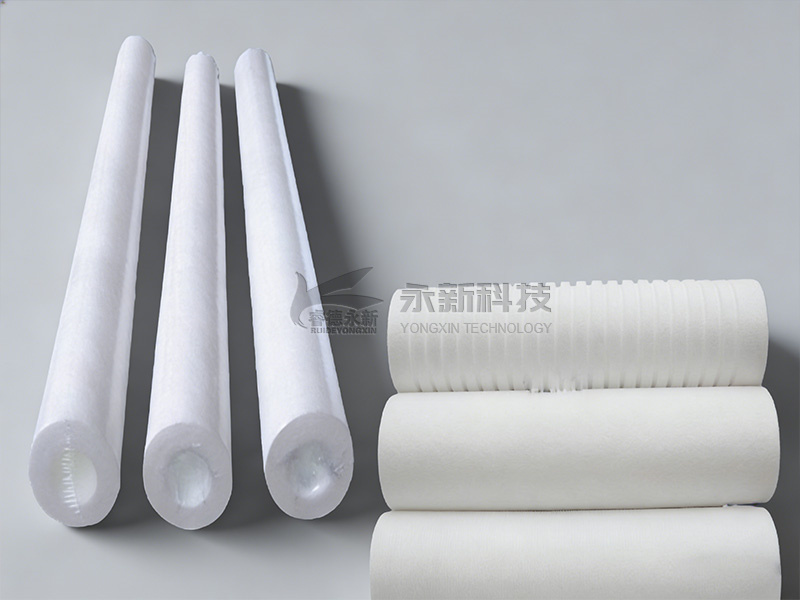

Melt blown filter cartridges are tubular filter elements manufactured from non-toxic, odorless polypropylene pellets via heating melting, melt spinning, drawing and forming.

Product Features

It features smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.

It is a porous deep-filter material made of stainless steel fibers sintered at high temperature.

The pleated filter core boasts high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry

Technical Parameters
