Committed to innovative research and application of filtration and separation technologies

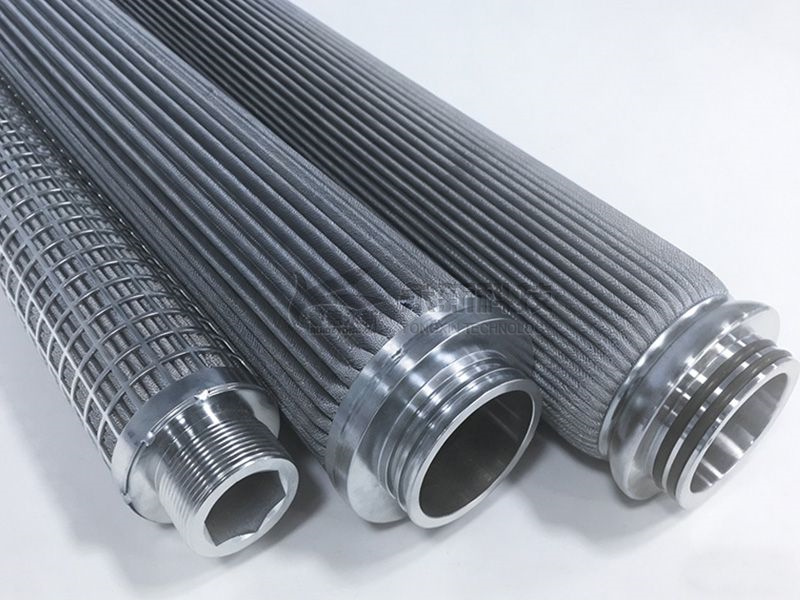

Sintered Metal Wire Mesh Filter Cartridge
ModelPore Size μmPorosity %Permeability (N₂)Bubble Point Pressure PaDirt Holding Capacity mmRelative Permeability CoefficientL/min·cm²·PaSSZ-0033684.5×10-4123000.6~0.8SSZ-0055752.0×10-350000.5~0.6SSZ-01010775.0×10-337000.4~0.5SSZ-01515788.0×10-326000.4~0.5SSZ-02020751.2×10-218900.4~0.5SSZ-02525801.6×10-215600.3~0.4SSZ-03030802.2×10-213000.3~0.4SSZ-04040783.0×10-29750.3~0.4SSZ-06060855.0×10-46900.3~0.4Stainless steel woven mesh is woven from stainless steel wire. Its pleated filter cartridges feature smooth flow channels, easy cleaning, high temperature resistance, corrosion resistance, no mesh shedding and long filtration cycle.Stainless steel fiber sintered felt is a porous deep-filter material made of stainless steel fibers sintered at high temperature. Its pleated filter elements deliver high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.
Committed to innovative research and application of filtration and separation technologies

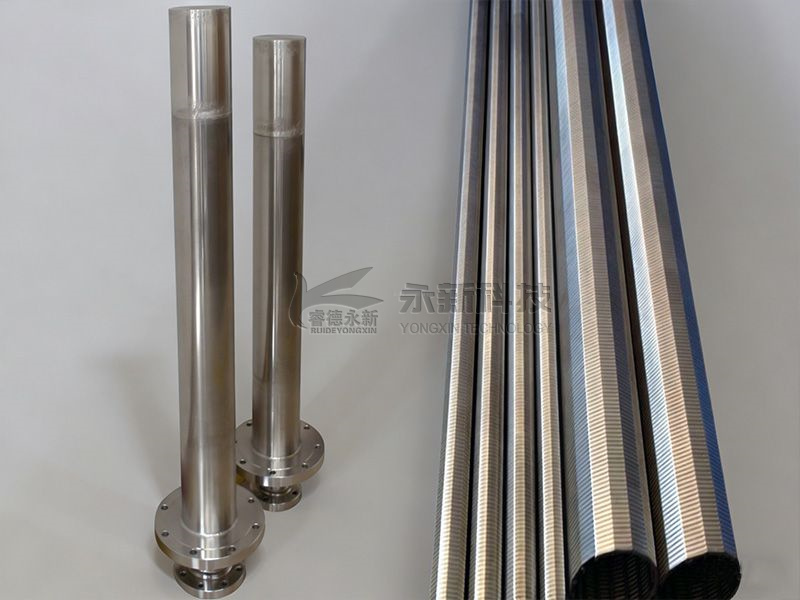

Wedge Wire Filter Element
# Technical SpecificationsNominal SizeDN25DN32DN40DN50DN65DN80Screen TubeOuter DiameterΦ32Φ38Φ45Φ57Φ76Φ89Inner DiameterΦ23.3Φ29.3Φ36.3Φ48.3Φ67.3Φ80.3Number of Support Rods121214162022Nominal SizeDN100DN125DN150DN200DN250DN300Screen TubeOuter DiameterΦ108Φ133Φ159Φ219Φ273Φ325Inner DiameterΦ99.3Φ121.6Φ147.6Φ207.6Φ261.6Φ313.6Number of Support Rods283036486070Wedge Wire Screen, also known as Johnson Screen, is composed of surface wires spirally wound around axial support rods. The support rods and surface wires are integrated together by resistance welding.
## Wide Range of Applications
Water treatment, petrochemical, papermaking, beverage, food, pharmaceutical, biotechnology and other industries.
Committed to innovative research and application of filtration and separation technologies

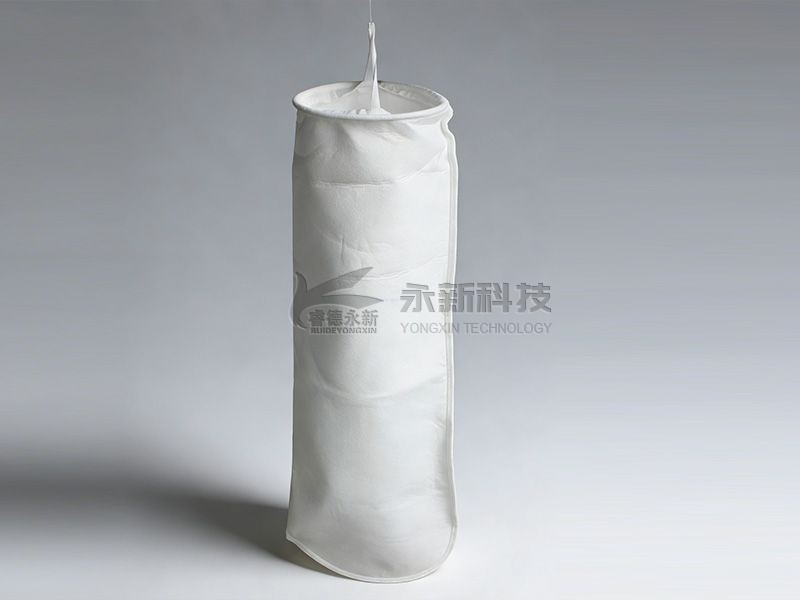

Filter Bag
Filter Bag
Committed to innovative research and application of filtration and separation technologies

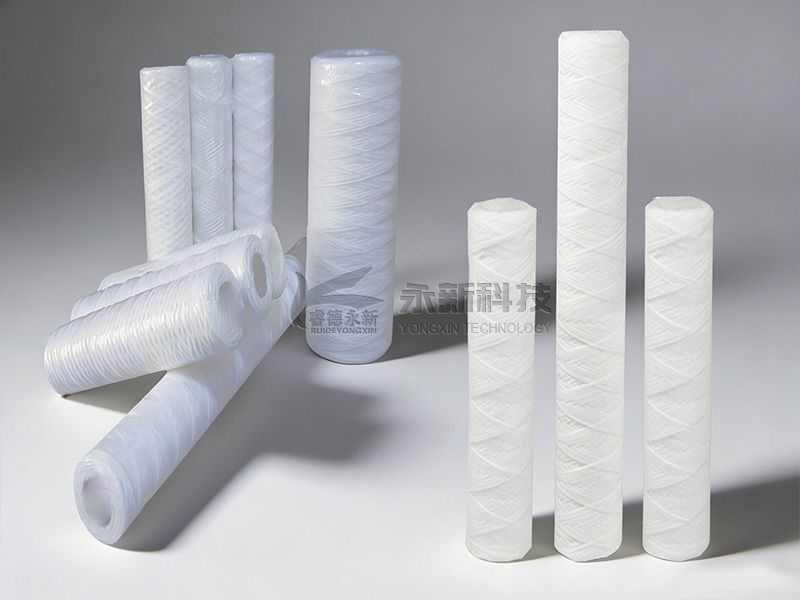

String Wound Filter Cartridge# Technical Parameters Size 10 inch 20 inch 30 inch 40 inch Outer Diameter (±1mm) 63mm 63mm 63mm 63mm Inner Diameter (±1mm) 28mm/30mm 28mm/30mm 28mm/30mm 28mm/30mm
Technical ParametersSize10 inch20 inch30 inch40 inchOuter Diameter (±1mm)63mm63mm63mm63mmInner Diameter (±1mm)28mm/30mm28mm/30mm28mm/30mm28mm/30mmLength254mm508mm762mm1016mmFilter MediaAbsorbent cotton yarn, polypropylene yarnSupport CorePP core, stainless steel coreRemarksAll sizes can be customizedString wound filter cartridges are manufactured by precisely winding textile fiber yarns around a porous support core. Different filtration ratings are achieved by adjusting winding density and pore geometry of the filter layer.
They efficiently remove suspended solids and fine particles from liquids and withstand high filtration pressure. The gradient pore structure (larger outer pores, smaller inner pores) delivers excellent deep-depth filtration performance, superior chemical compatibility and high dirt holding capacity. Multiple material options are available to suit various liquid filtration applications.
Committed to innovative research and application of filtration and separation technologies

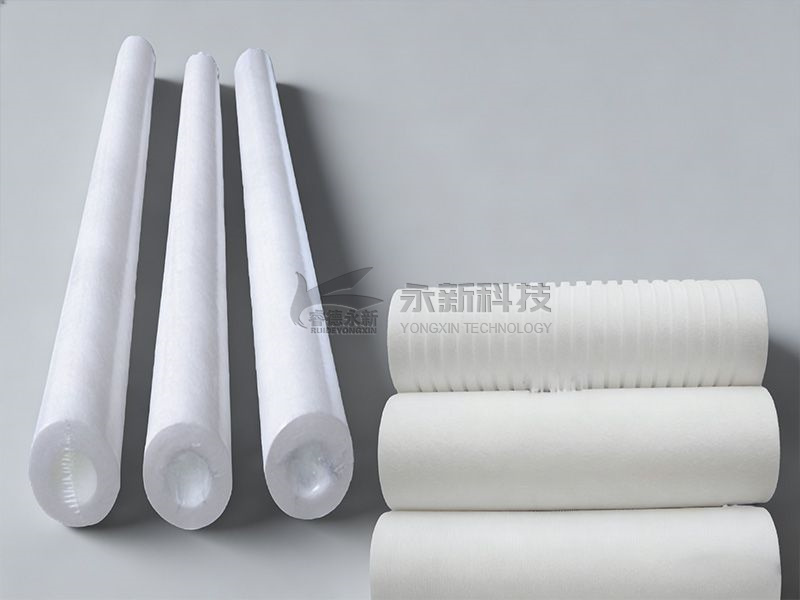

Melt Blown Filter Cartridge
Filter Cartridge Type10 inch20 inch30 inch40 inchCartridge Length254mm508mm762mm1016mmFlow Rate (t/h)0.511.52.0Filtration Area (㎡)0.511.52.0Cartridge MaterialPolypropylene (PP)Cartridge End Cap TypesStandard flat end, 215, 222, 226Filtration Rating (μm)1, 5, 10, 25, 50, 75, 100, 150, 200Cartridge Diameter (mm)OD: 62–65, ID: 28–30Max Operating TemperaturePP: 90℃RemarksCustom pore sizes and lengths available upon customer requestMelt blown filter cartridges are tubular filter elements manufactured from non-toxic, odorless polypropylene pellets via heating melting, melt spinning, drawing and forming.
Committed to innovative research and application of filtration and separation technologies

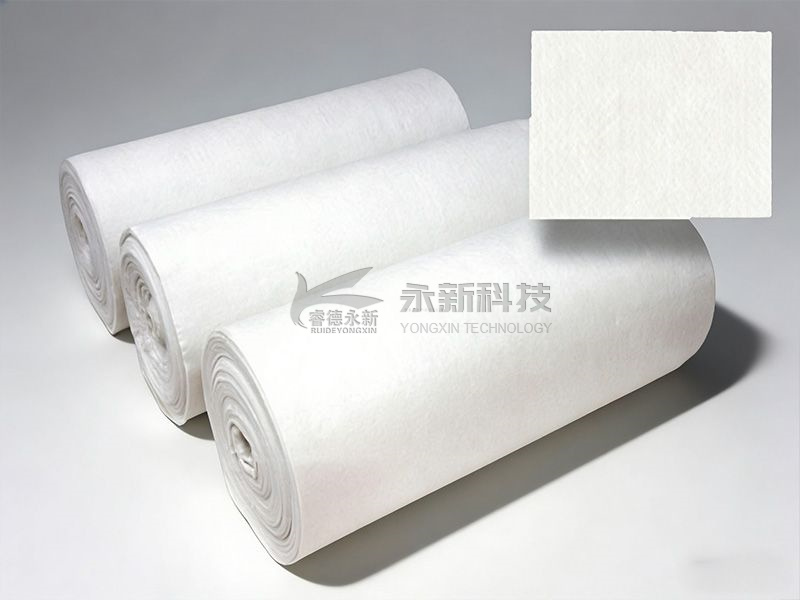

Filter Cloth
Application ScopeSuitable for solid-liquid separation and gas-solid separation.Gas-solid Separation FieldsFlue gas dust removal systems of ironworks, steel plants, ferroalloy factories, refractory plants, foundries, power plants and other factories;
Flue gas filtration for waste incinerators, coal-fired boilers, fluidized bed boilers, etc.
Committed to innovative research and application of filtration and separation technologies

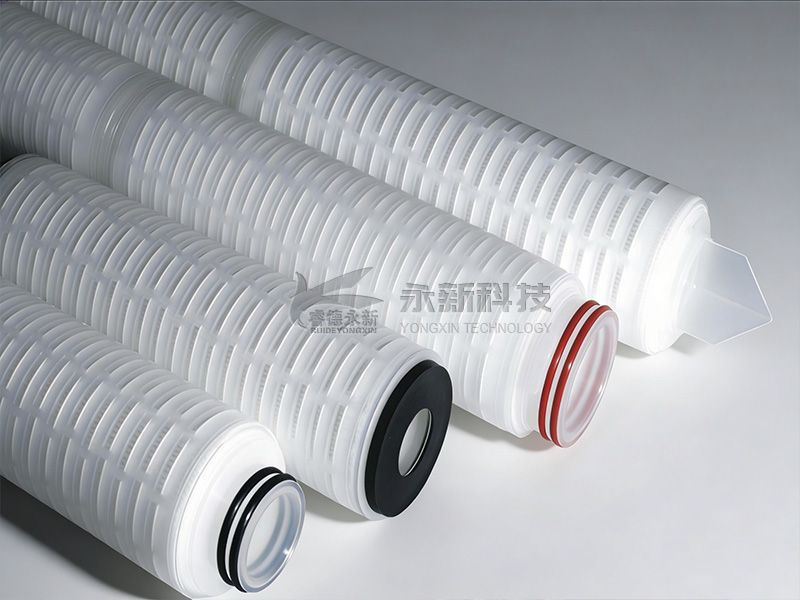

Polypropylene Pleated Filter Cartridge
Product FeaturesThe entire cartridge is thermally formed from polypropylene without adhesives, non-toxic to organisms.High filtration efficiency.Low pressure drop, no fiber shedding.Non-photosensitive material.Large filtration area.Sterilizable and disinfectable.Technical ParametersFiltration Rating (μm): 0.1, 0.2, 0.45, 1, 2, 3, 5, 10, 30, 60Max Working Differential Pressure (MPa): 0.4Operating Temperature (℃): 80Sterilization Temperature (℃): 120 (under 0.1 MPa)Dimensions: Inner Diameter Φ30 mm, Outer Diameter Φ65 mmAvailable Lengths: 250, 500, 750, 1000 mmApplication FieldsPetroleum IndustryChemical IndustryFood & Beverage Industry
0373-7722918
