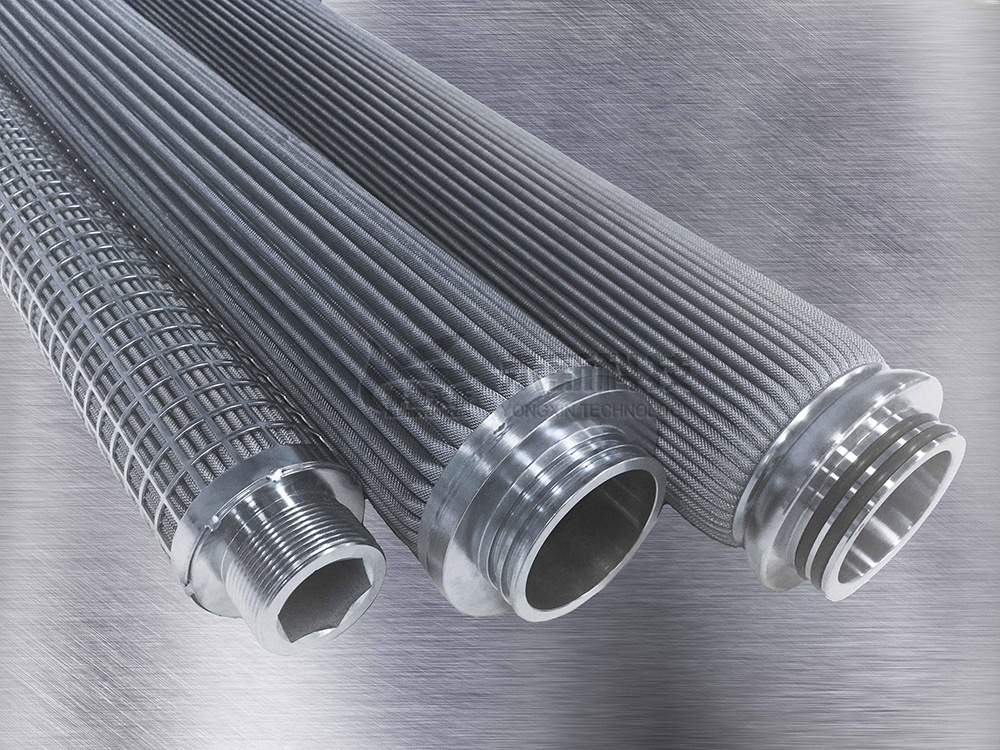

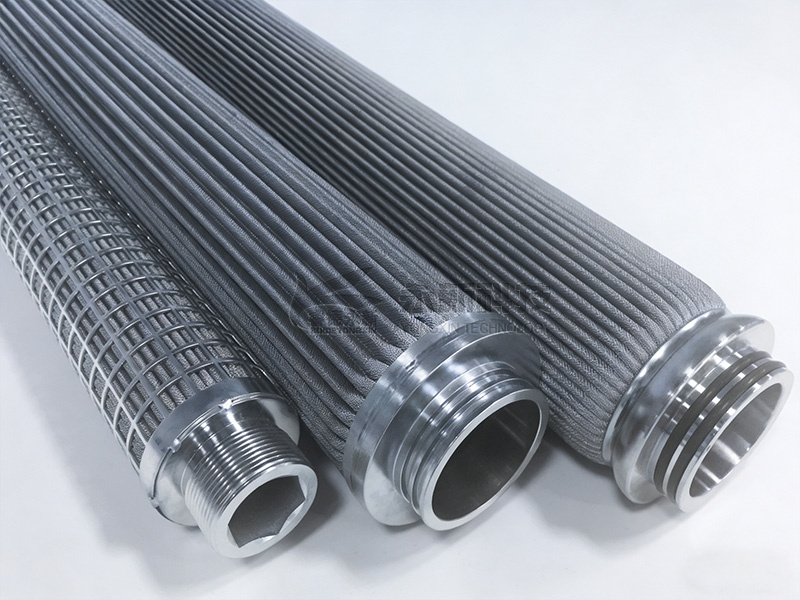

Sintered Metal Felt Filter Cartridge

Product Introduction:

ModelPore Size (μm)Porosity (%)Permeability (N₂)Bubble Point Pressure (Pa)Dirt Holding Capacity (mm)Relative Permeability CoefficientL/min·cm²·PaSSZ-0033684.5×10-4123000.6~0.8SSZ-0055752.0×10-350000.5~0.6SSZ-01010775.0×10-337000.4~0.5SSZ-01515788.0×10-326000.4~0.5SSZ-02020751.2×10-218900.4~0.5SSZ-02525801.6×10-215600.3~0.4SSZ-03030802.2×10-213000.3~0.4SSZ-04040783.0×10-29750.3~0.4SSZ-06060855.0×10-46900.3~0.4Stainless steel woven mesh is woven from stainless steel wire. Its pleated filter cartridges feature smooth channels, easy cleaning, high temperature resistance, corrosion resistance, non-shedding mesh and long filtration cycles.Stainless steel fiber sintered felt is a porous deep filtration material made by high-temperature sintering of stainless steel fibers. Its pleated filter cores boast high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

Model	Pore Size (μm)	Porosity (%)	Permeability (N₂)	Bubble Point Pressure (Pa)	Dirt Holding Capacity (mm)
Model	Pore Size (μm)	Porosity (%)	Relative Permeability Coefficient L/min·cm²·Pa	Bubble Point Pressure (Pa)	Dirt Holding Capacity (mm)
SSZ-003	3	68	4.5×10-4	12300	0.6~0.8
SSZ-005	5	75	2.0×10-3	5000	0.5~0.6
SSZ-010	10	77	5.0×10-3	3700	0.4~0.5
SSZ-015	15	78	8.0×10-3	2600	0.4~0.5
SSZ-020	20	75	1.2×10-2	1890	0.4~0.5
SSZ-025	25	80	1.6×10-2	1560	0.3~0.4
SSZ-030	30	80	2.2×10-2	1300	0.3~0.4
SSZ-040	40	78	3.0×10-2	975	0.3~0.4
SSZ-060	60	85	5.0×10-4	690	0.3~0.4

Stainless steel woven mesh is woven from stainless steel wire. Its pleated filter cartridges feature smooth channels, easy cleaning, high temperature resistance, corrosion resistance, non-shedding mesh and long filtration cycles.
Stainless steel fiber sintered felt is a porous deep filtration material made by high-temperature sintering of stainless steel fibers. Its pleated filter cores boast high porosity, excellent air permeability, strong dirt holding capacity and outstanding regenerability.

Product Features

Stable shape, superior impact resistance and alternating load tolerance compared with other metal filter media;

Good air permeability and stable separation performance;

Excellent mechanical strength, applicable to high-temperature, high-pressure and strongly corrosive environments;

Especially suitable for high-temperature gas filtration.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry
