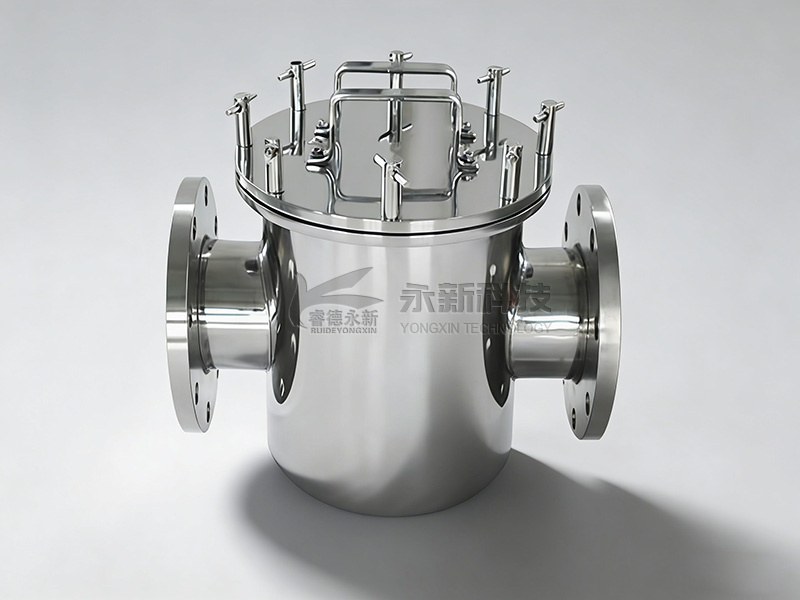

Magnetic Filter

The magnetic filter is assembled with multiple strong magnetic rods made of permanent magnet materials through special magnetic circuit design. During the transportation of liquid slurry, ferrous fine particles ranging from 0.5 to 60 microns in the slurry will be adsorbed on the magnetic rods. It thoroughly removes iron impurities from the slurry to purify materials, guarantee product quality, production safety and stable operation of downstream equipment.

Product Features

■ Magnetic field strength reaches 12000GS with a service life of over 10 years;

■ Optimized magnetic circuit design and high-gradient multi-stage filtration ensure full contact between fluid and magnetic rods for excellent iron removal performance;

■ Zero energy consumption during operation, no consumables or moving parts, quick installation and easy cleaning;

■ Housing available in SS304 or SS316L stainless steel.

Number of Magnetic Rods	5 pcs	7 pcs	9 pcs
Housing Material	SS304, SS316L Stainless Steel
Inlet & Outlet Diameter	DN25-100, flange, thread, clamp quick-open connection
Working Pressure	1.0MPa, 1.6MPa
Surface Treatment	Mat sandblasting, mirror polishing
Remarks	1. Thermal insulation jacket design is optional to maintain or raise liquid temperature, prevent liquid solidification and meet temperature requirements of production lines; 2. Magnetic rods can be equipped with stainless steel jacket for easy cleaning of adsorbed impurities.

Typical Applications

Magnetic filters are suitable for removing iron powder and other magnetic impurities mixed in high-concentration liquids, including food products (syrup, jam, fruit juice, edible oil, chocolate) and chemicals (paint, lubricating oil, cutting fluid, dye, industrial syrup, pulp, salt water).
