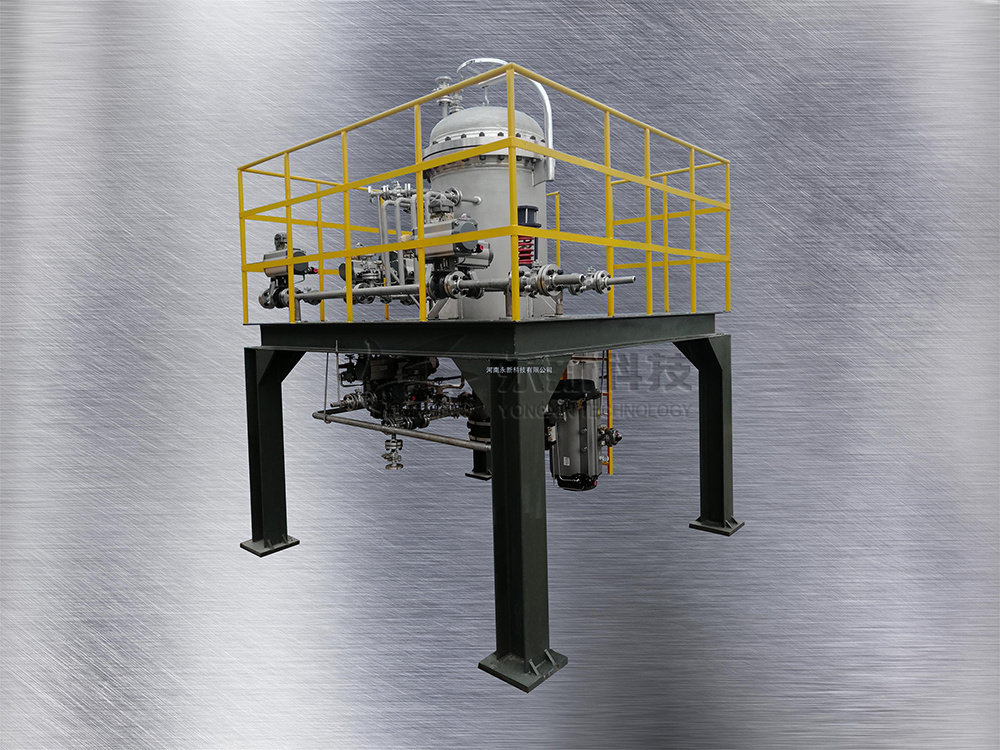

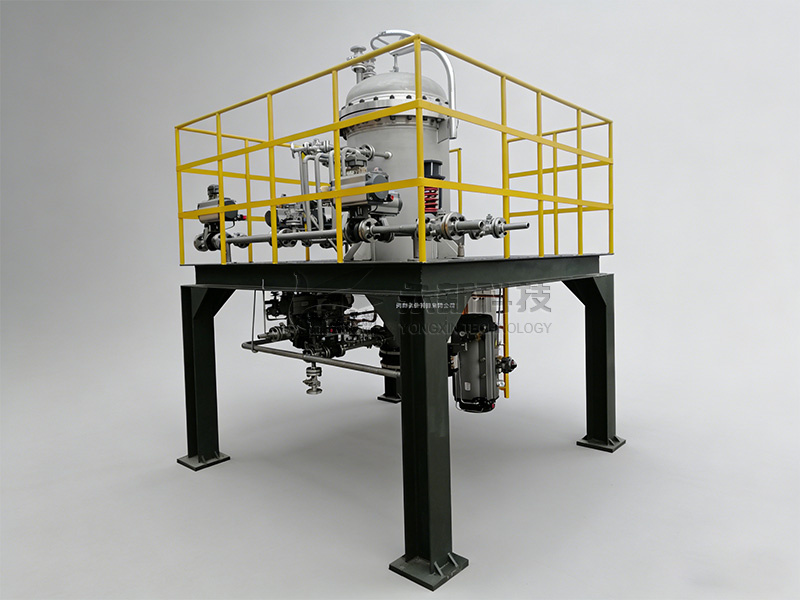

Candle Filter

The candle filter is a new pulse back-blow filter. It features sealed operation, large filtration area, high dirt holding capacity, easy filter cake removal by pulse back-blowing and high automation level. This filter integrates five functions: direct filtration, pre-coat filtration, slurry concentration, filter cake recovery and filter cake washing. It is widely used in special working conditions such as high impurity content, viscous liquids and high-precision filtration requirements.

Technical Features

■ Fully enclosed filtration with zero leakage and no environmental pollution;

■ Multi-layer filter cartridge structure with large flow capacity;

■ Pulse gas back-blowing for residue discharge, easy filter cake separation, suitable for viscous materials;

■ Fully automatic operation available.

Filtration Area	5.0㎡	10㎡	15㎡	20㎡	25㎡	30㎡	40㎡
Equipment Material	SS304, SS316L, Carbon Steel
Design Pressure	0.6MPa
Seal Material	Silicone Rubber, EPDM, Viton, PTFE Coated Viton

(1) Thermal insulation jacket design is optional to maintain or raise liquid temperature, avoid liquid solidification and satisfy temperature requirements of production lines. (2) Two or more filters can be installed in parallel in modular combination to realize high flow rate or continuous production.

Application Fields

■ Petrochemical Industry: Amine solution, catalyst recovery, sulfuric acid, polyol, titanium dioxide, PTA particles, polyglycol, potassium carbonate, epoxy resin;

■ Food & Beverage: Apple juice, grape juice, raw syrup, high fructose corn syrup, glucose syrup, sucrose, beer, olive oil, palm oil, soybean oil, corn oil, gelatin;

■ Wastewater Treatment: Electronic wastewater treatment, printing & dyeing wastewater treatment, chemical wastewater treatment, etc.
