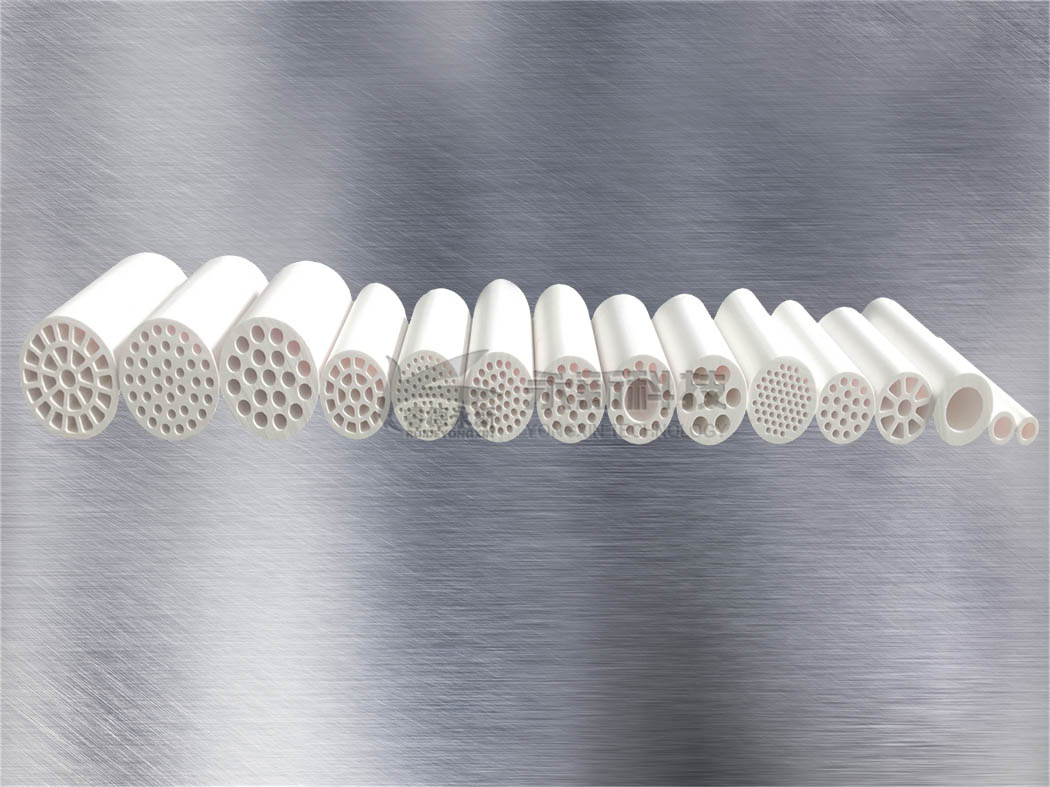

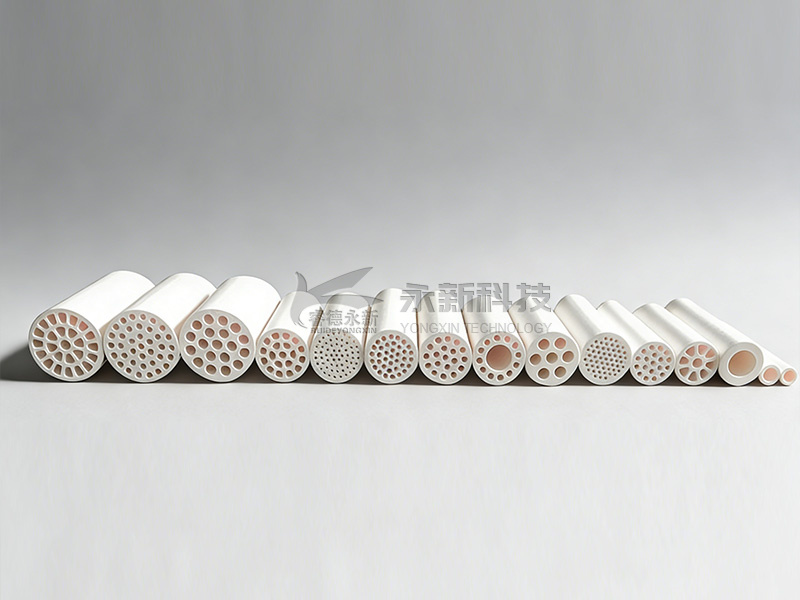

Inorganic Ceramic Membrane Tube

Product Introduction:

　　Ceramic membrane tubes are asymmetric membranes manufactured from inorganic ceramic materials via special processes. The tube walls of tubular ceramic membranes are densely covered with micropores. Under pressure, feed liquid flows either inside or outside the membrane tubes; small-molecule substances (or liquids) permeate through the membrane, while large-molecule substances (or solids) are retained by the membrane, realizing separation, concentration, purification, environmental treatment and other purposes.Ceramic membranes possess multiple merits including high separation efficiency, stable treatment performance, excellent chemical stability, acid and alkali resistance, organic solvent resistance, bacteria resistance, high temperature resistance, anti-fouling performance, high mechanical strength and favorable regenerability. The separation process is simple with low energy consumption, easy operation and maintenance and long service life. They have been successfully applied in various sectors such as food, beverage, deep processing of plants and medicinal herbs, biomedicine, fermentation and fine chemicals, and can be used for separation, clarification, purification, concentration, sterilization and desalination in technological processes.Customizable membrane tube length: 250mm to 1200mm

Formula, Manufacturing & Modification
Fully Independent R&D & Production Technology

High-standardMPS
Testing & Verification

Total Shipment Volume
5Million Units

Customer Repurchase Rate Exceeds
>30%30% for 5 Consecutive Years

Contact

Hotline：

0373-7722918

Product Introduction
Product Applications
Technical Specifications
Similar Recommendations

陶瓷膜管---

　　无机陶瓷膜参数_副本 (1)

Ceramic membranes possess multiple merits including high separation efficiency, stable treatment performance, excellent chemical stability, acid and alkali resistance, organic solvent resistance, bacteria resistance, high temperature resistance, anti-fouling performance, high mechanical strength and favorable regenerability. The separation process is simple with low energy consumption, easy operation and maintenance and long service life. They have been successfully applied in various sectors such as food, beverage, deep processing of plants and medicinal herbs, biomedicine, fermentation and fine chemicals, and can be used for separation, clarification, purification, concentration, sterilization and desalination in technological processes.

Customizable membrane tube length: 250mm to 1200mm

Product Features

Excellent chemical stability, resistant to acid, alkali and oxidation; tolerant to organic solvents and high temperatures.

High mechanical strength and excellent wear resistance;

Long service life and large processing capacity;

Narrow pore size distribution with ultra-high separation precision, supporting nanoscale filtration;

Easy to clean, available for in-line chemical disinfection, high-temperature sterilization and backwashing.

Product Applications

Widely used in coarse and fine filtration water treatment projects for power, oil wells, gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy, food, sand control, decoration and other industries.

chemical industry

new energy industry

Biopharmaceutical industry

Food fermentation industry

Sewage treatment industry

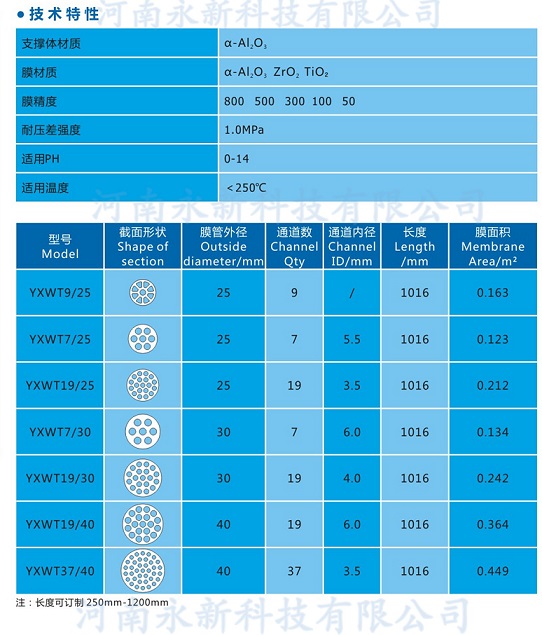

Technical Parameters

Model	Outer Diameter of Membrane Tube (mm)	Number of Channels	Inner Diameter of Channel (mm)	Length (mm)	Membrane Area (㎡)
YXWT9/25	25	9	/	1016	0.163
YXWT7/25	25	7	5.5	1016	0.123
YXWT19/25	25	19	3.5	1016	0.212
YXWT7/30	30	7	6	1016	0.134
YXWT19/30	30	19	4	1016	0.242
YXWT19/40	40	19	6	1016	0.364
YXWT37/40	40	37	3.5	1016	0.449
